This set of three rules and protractor enable precision measurements that are unobtainable with traditional rules or protractors, this will transform the way you work.

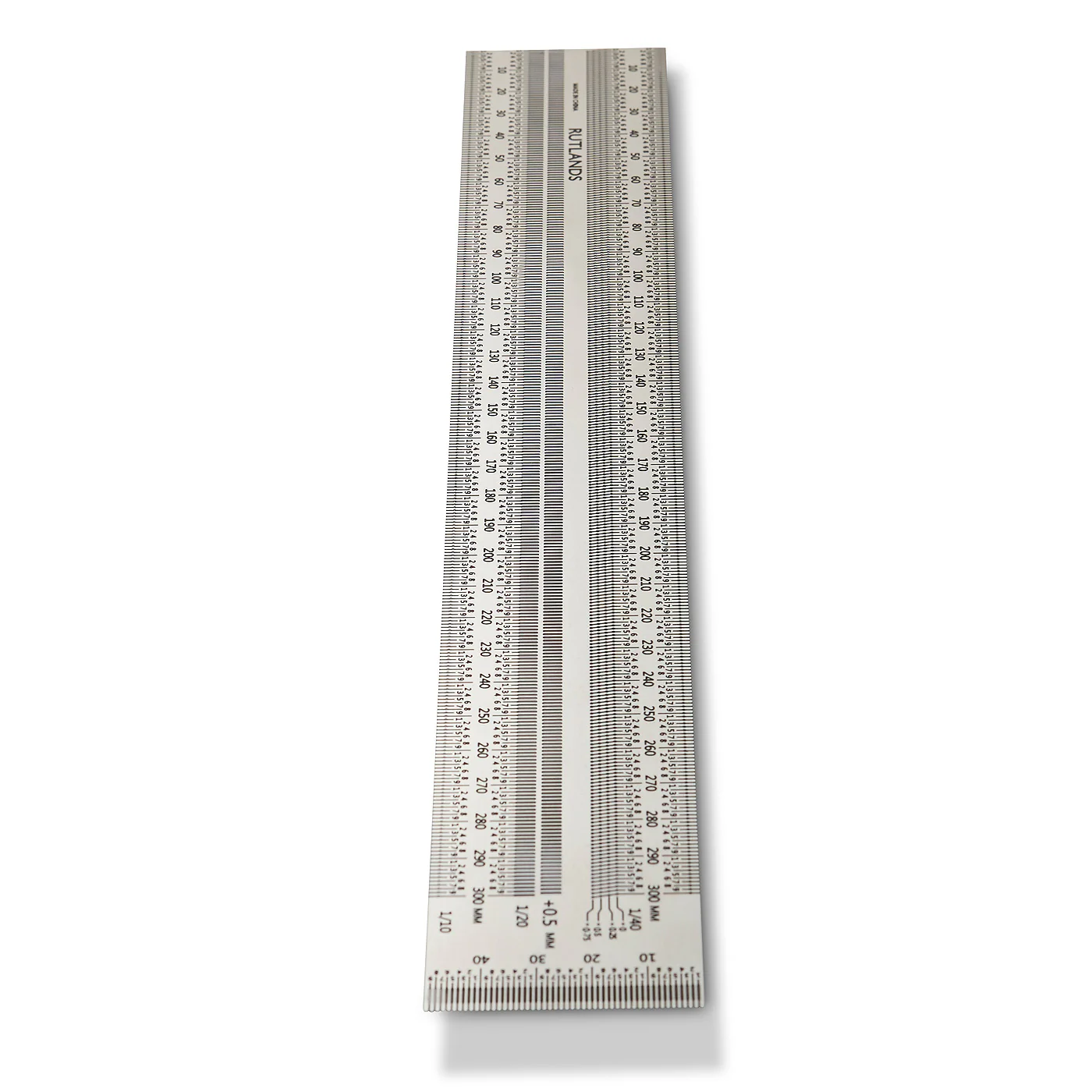

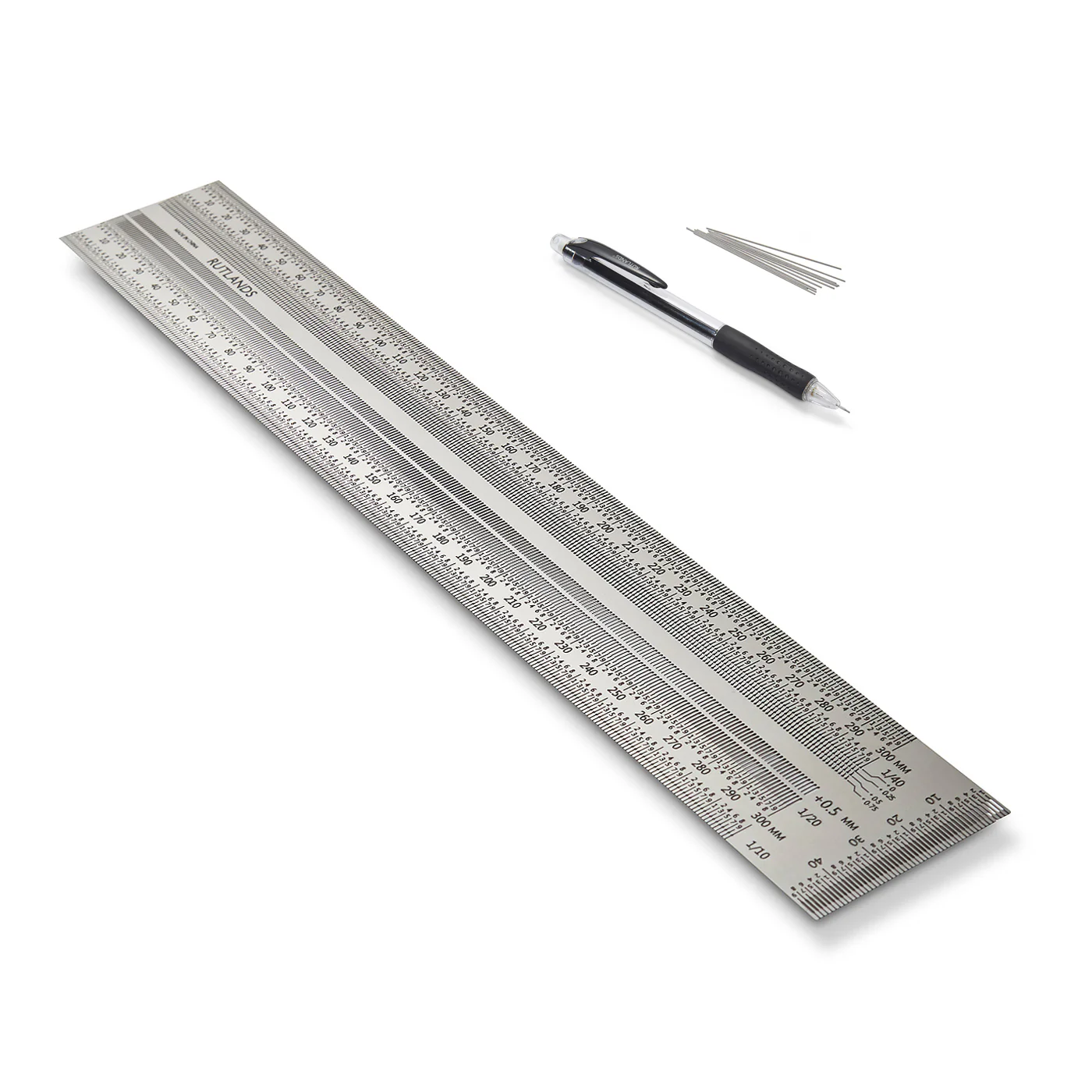

The steel rule is the most accurate way to mark points and measure precise distances. There are several microfine holes where you can locate the technical pencil for highly accurate marking. Because the rule itself is 0.2mm thick there is zero parallax error which would be common with thicker rulers. The rule features a multitude of different scales: 0 to 50mm height marking slots on the edge of the rule, 0 to 300mm distance marking slots with a marking slot every 0.5mm and 0 to 300mm guide holes with a guide hole every 0.25mm for drawing parallel lines.

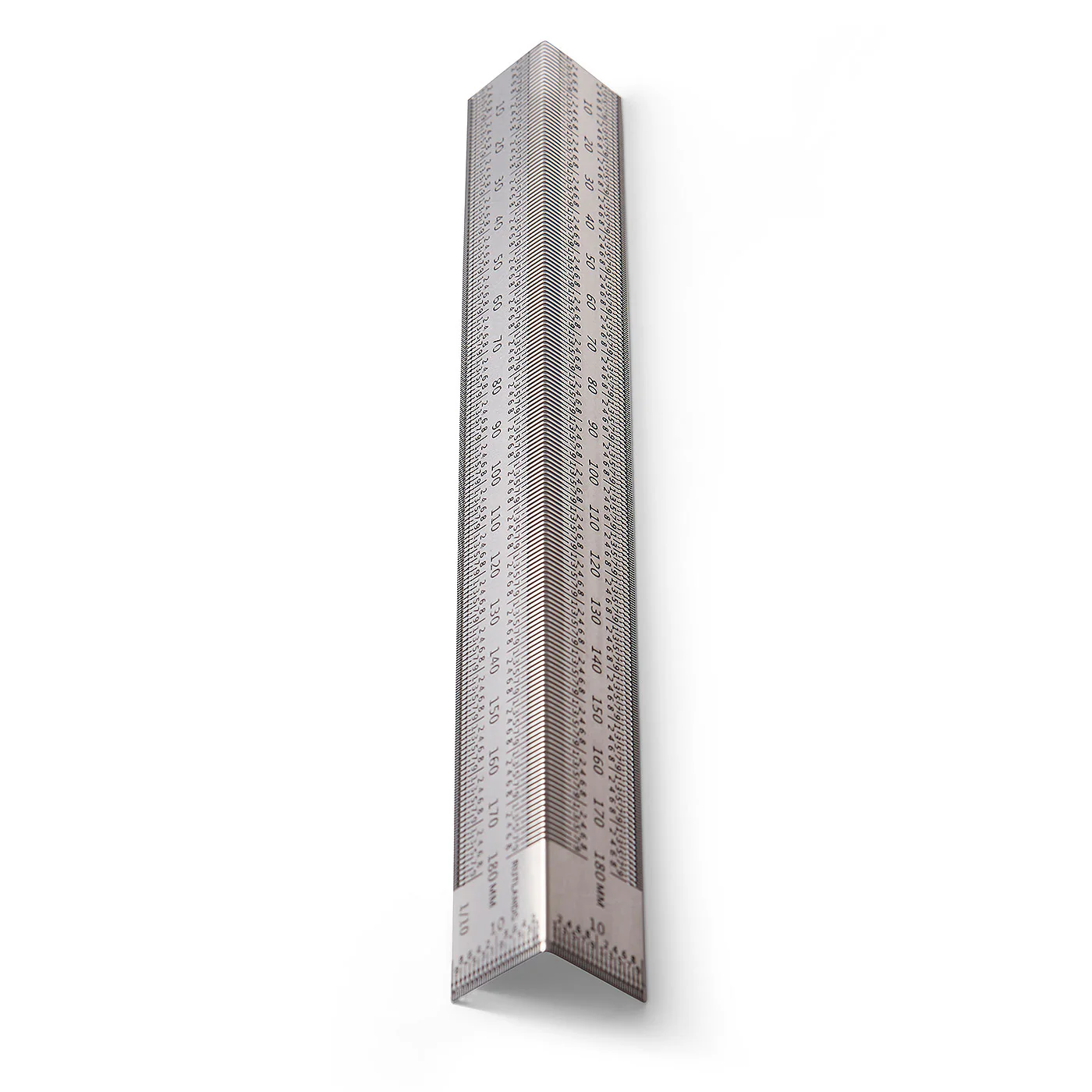

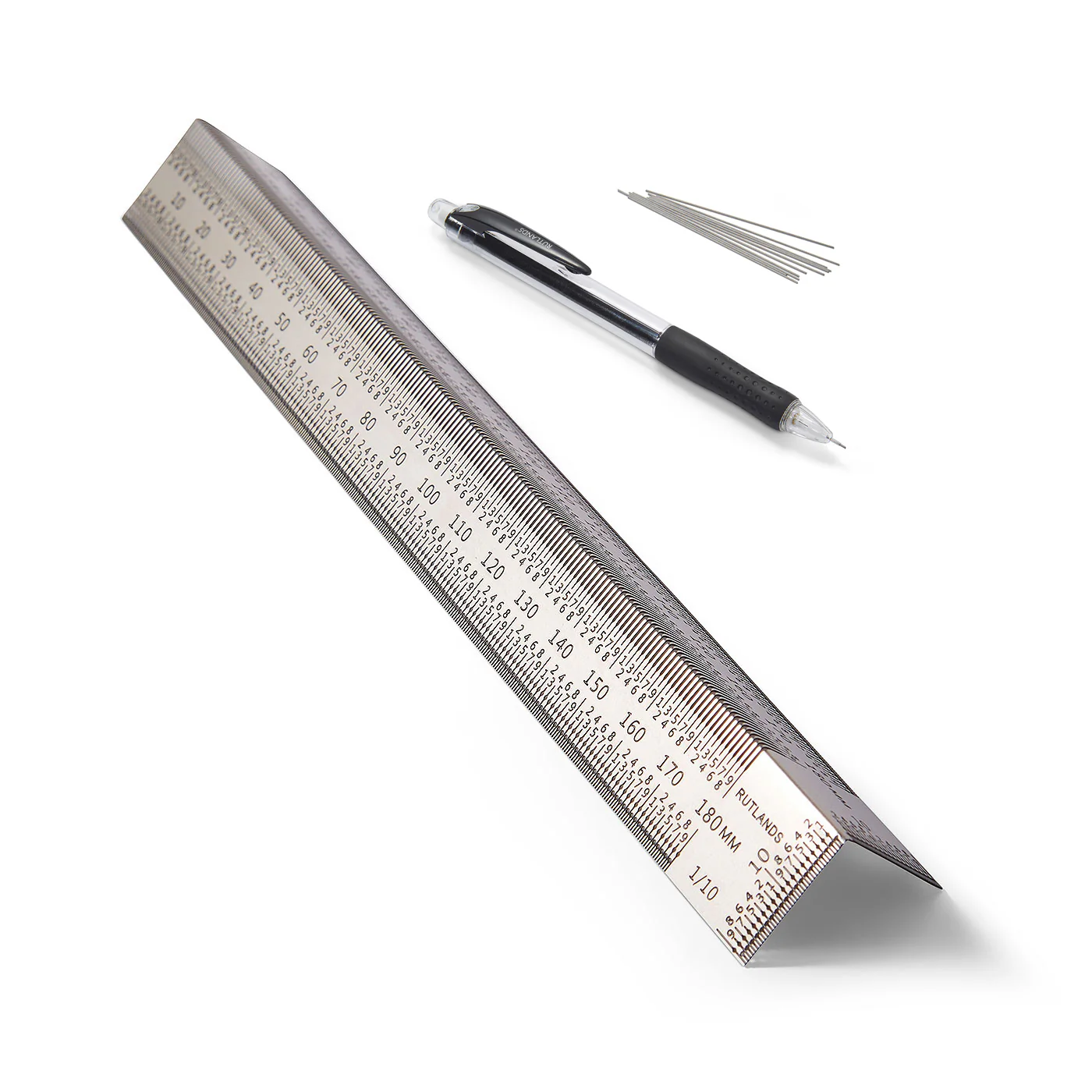

The steel bend rule has a 90 degree shape which allows it to comfortably sit over the corner of your workpiece, this means that you can simultaneously mark on two faces at once as well as marking right on the edge. The bend rule is very precise with three sets of marking holes every 0.5mm, one on each face and one saddling the edge. The rule also allows precise, straight, and parallel lines to be drawn at every 0.5mm relative from the workpiece edge. Simply insert a precision pencil into a guide hole and slide the bend rule and pencil along to generate the line. Because the rule itself is 0.2mm thick there is zero parallax error which would be common with thicker rulers. The rule features a multitude of different scales: 0 to 180mm length marking slots with holes every 0.5mm on both faces and the edge, and 0 to 50mm distance marking slots on the end of the rule with a guide hole every 0.5mm for drawing parallel lines.

The steel protractor is the most accurate way to mark or determine angles when setting up or marking out, there is a microfine marking hole every 0.5° around the entire 180° range. Alongside the 0.5° holes there are also predefined marking holes every 1°, every 5° and every 22.5° to plot the most commonly used angles with ease and complete accuracy. A phenolic material T bar coupled with a precision crosshair ensures perfect alignment of the protractor and your workpiece edge. There are four angle scales to suit every possible need in the workshop.

The rules and protractor have been laser cut from stainless steel making them incredibly accurate and they will not rust or degrade because of the durable nature of the stainless steel. The crisp and clear precision etched graduations are very easy to read so you will not strain your eyes. The precision measurements achievable with this set are unobtainable with traditional rules or protractors, this will transform the way you work.

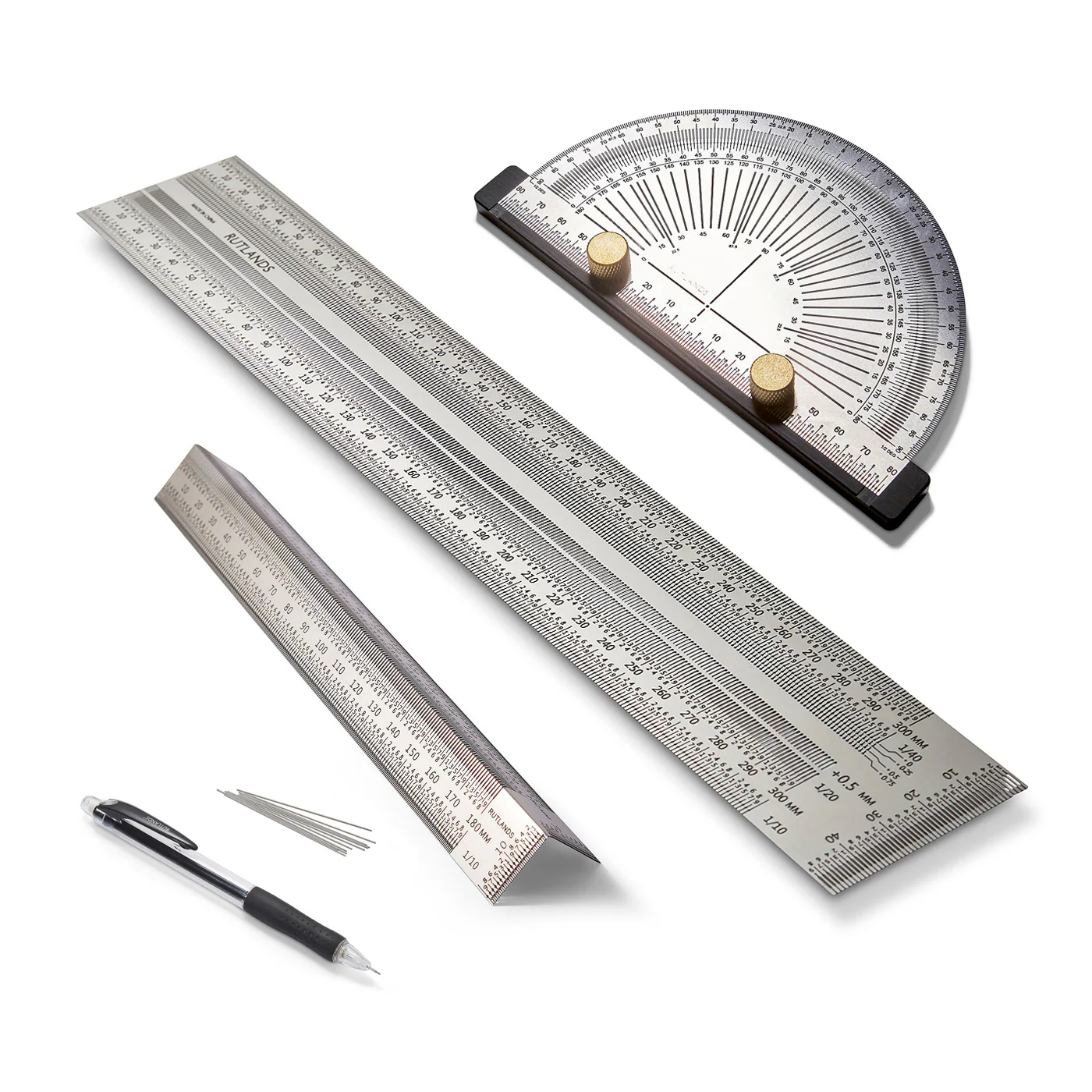

The set contains a 300mm straight rule, a 180mm bend rule, protractor, three 0.5mm pencils and 36 refills. ©

Rules and Squares

Bend Rule - 180mm

Protractor

Rules and Protractor - Set of 3

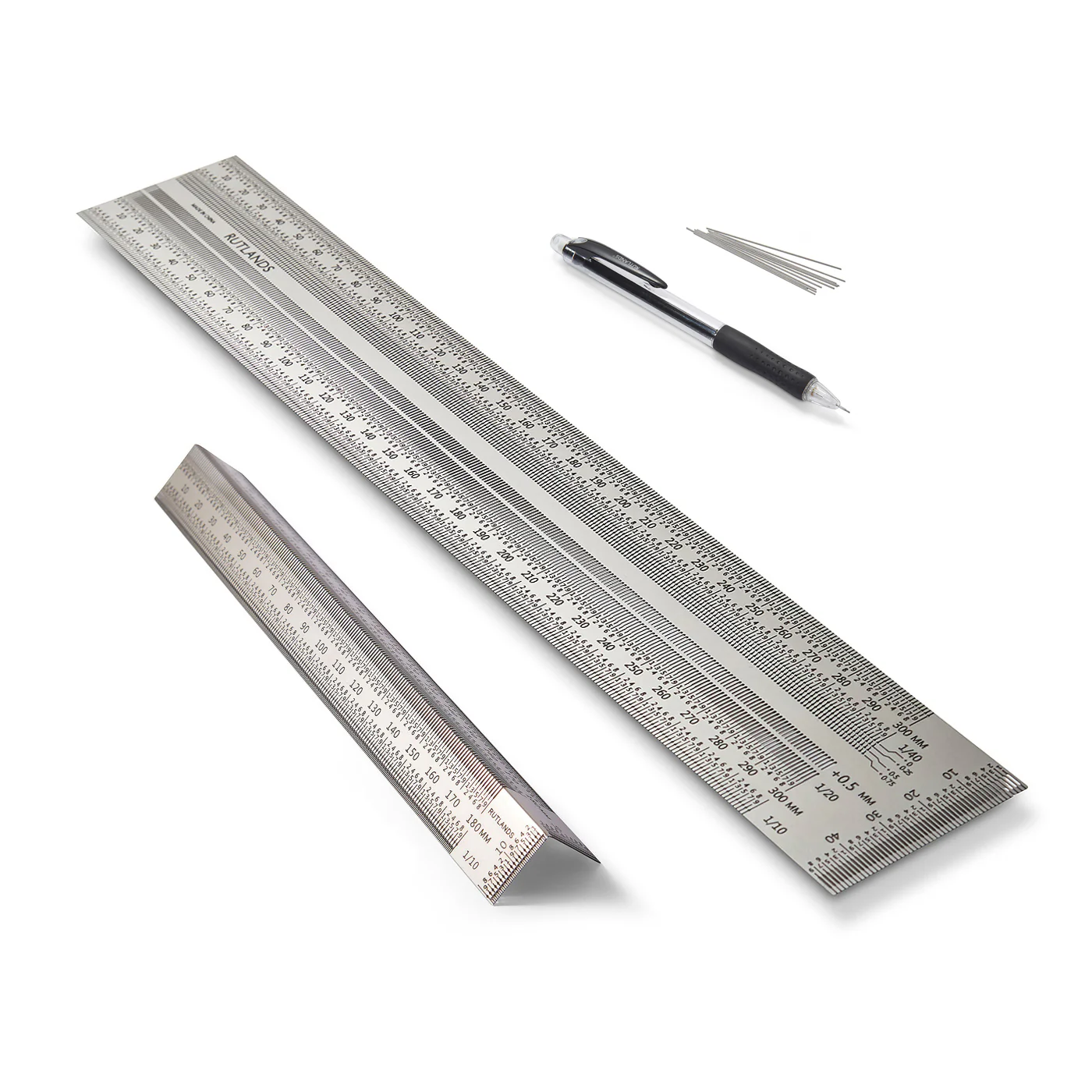

Rules - Set of 2

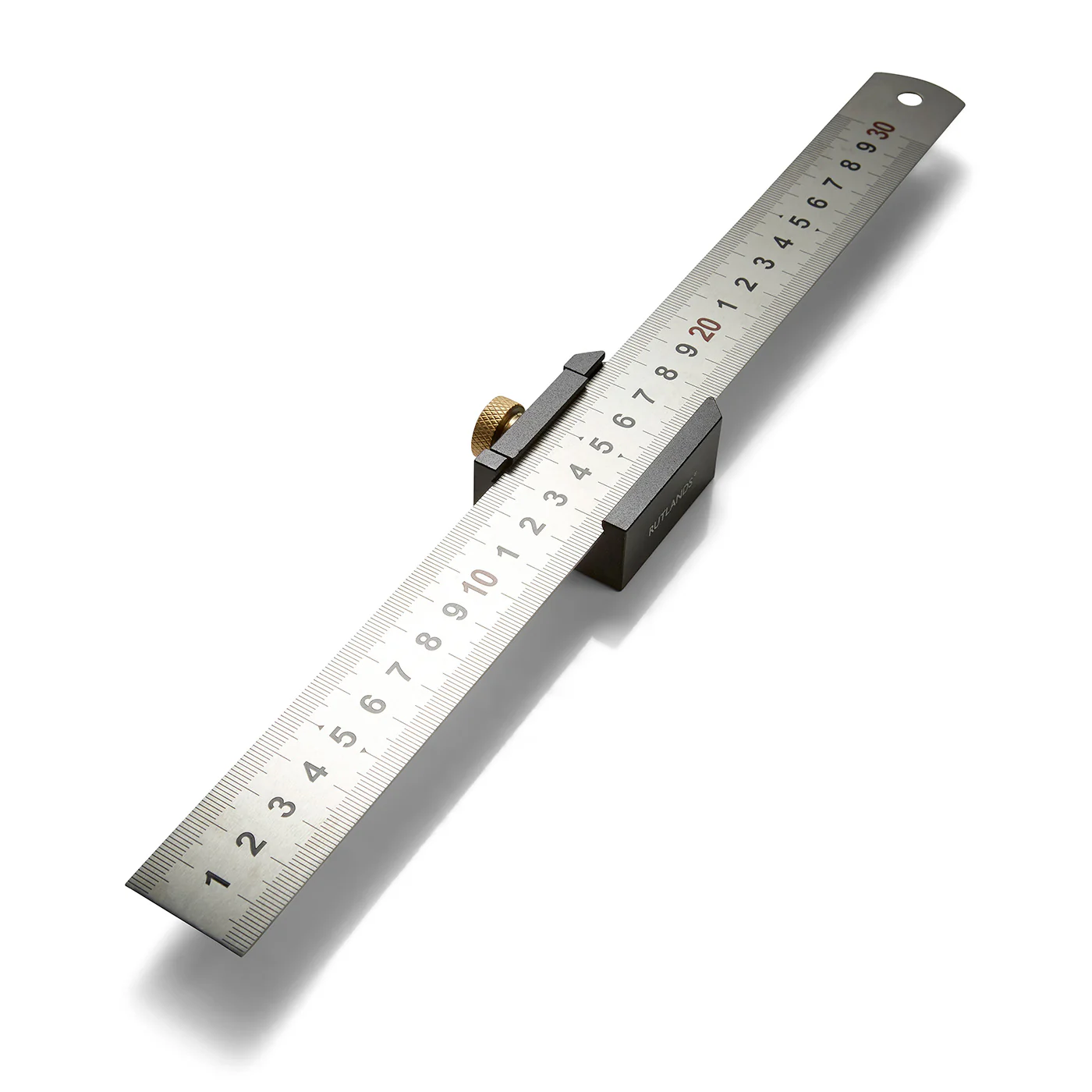

Rule & Stop - 300mm

Rule - 300mm

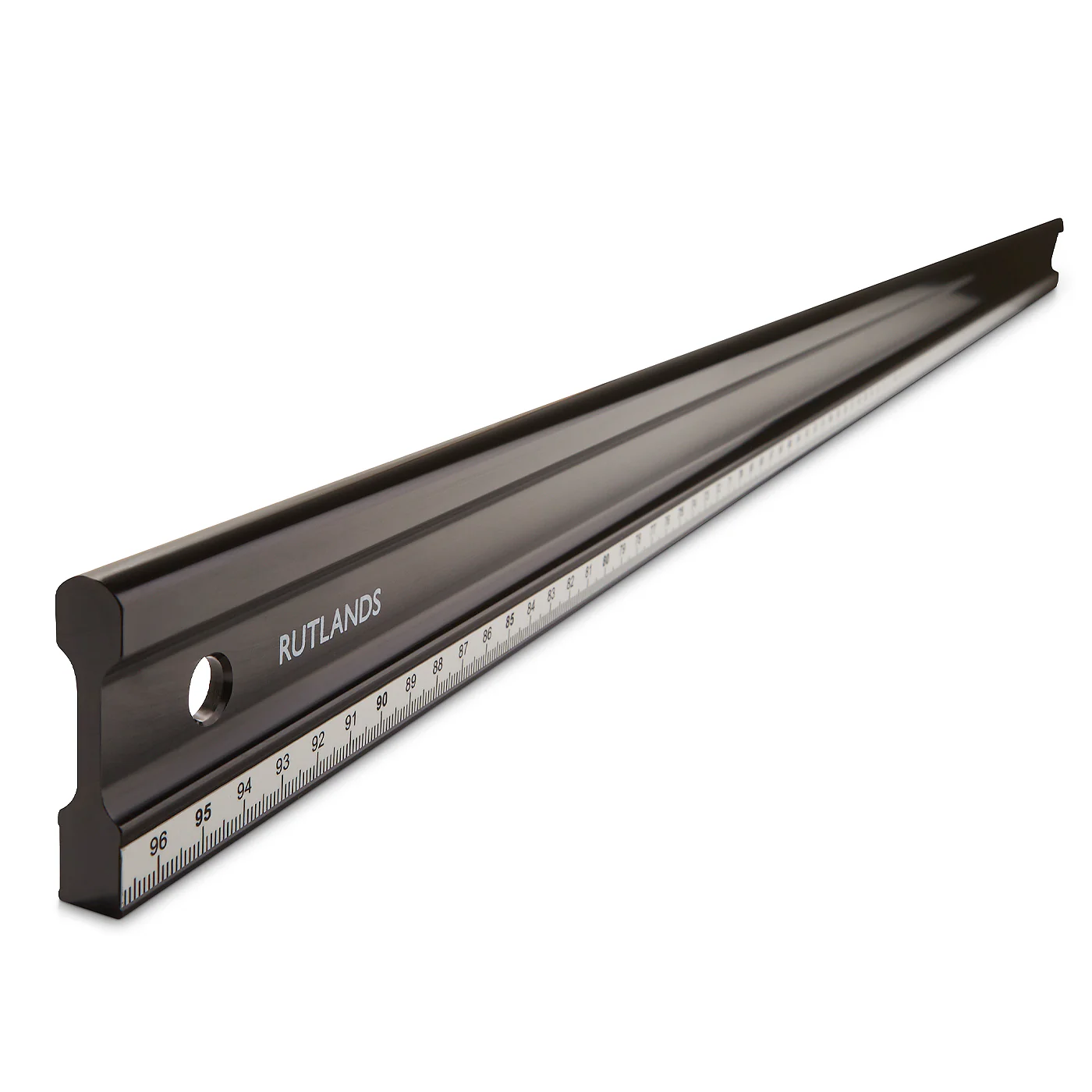

Straight Edge - 965mm

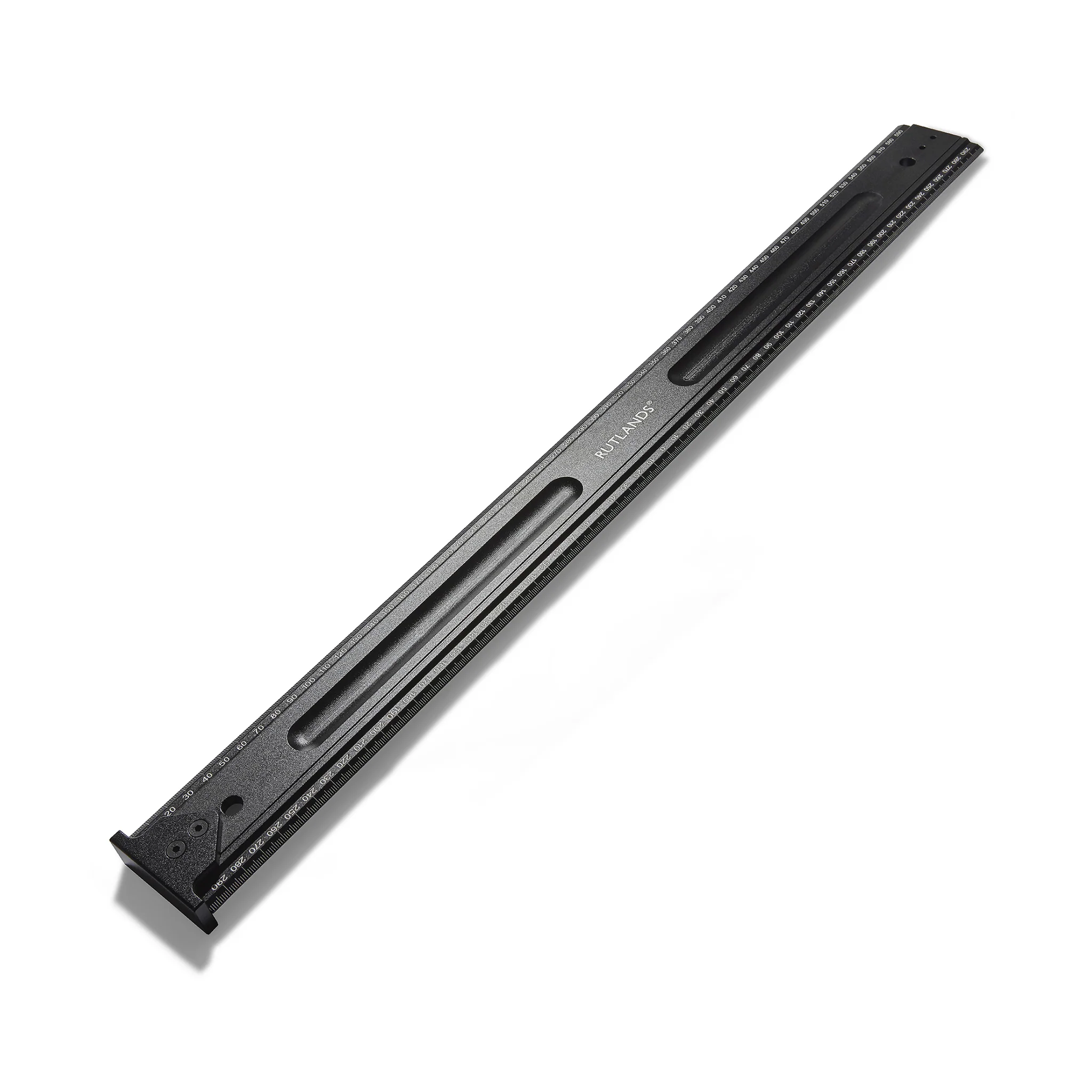

Straight Rule - 600mm

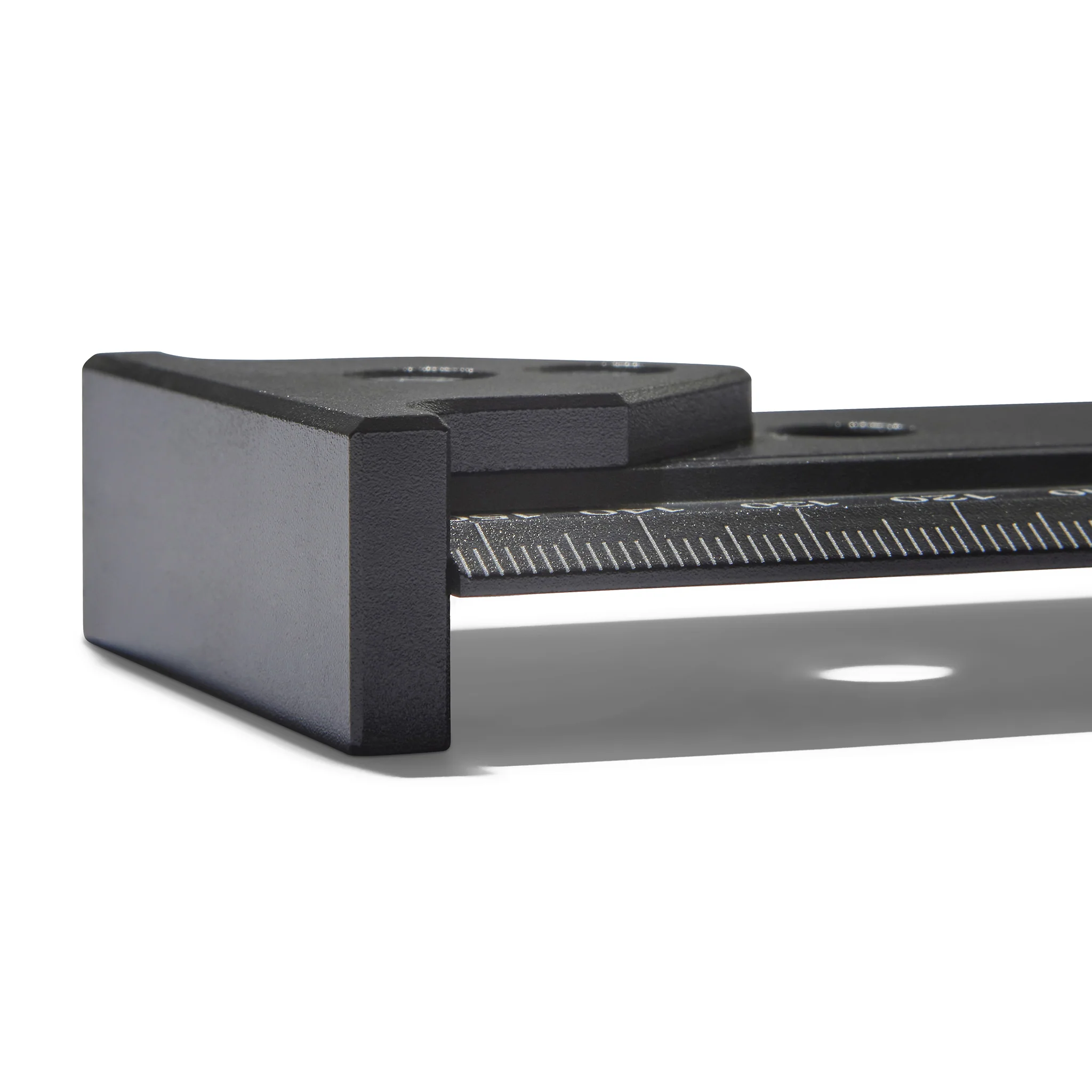

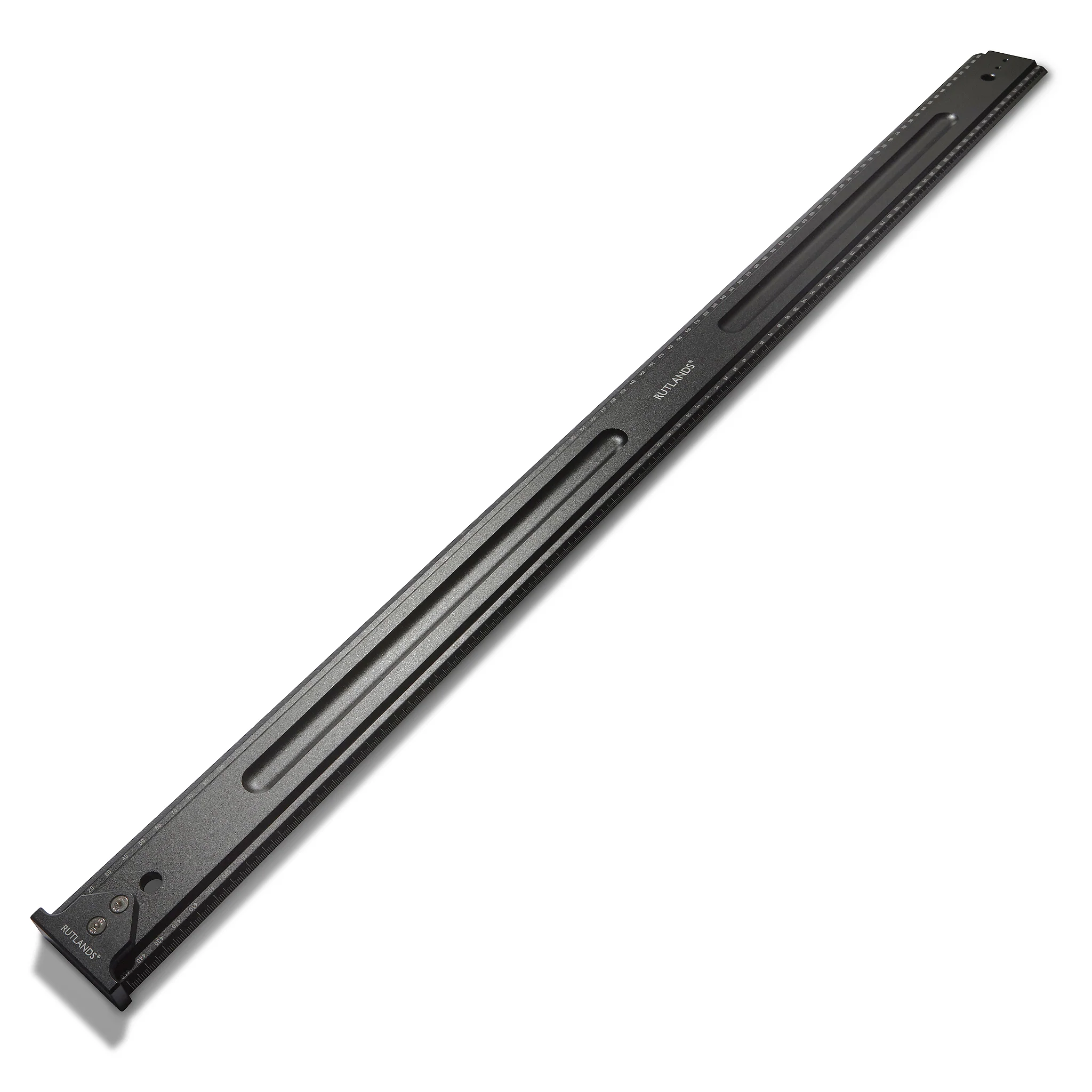

Straight Rule - 900mm

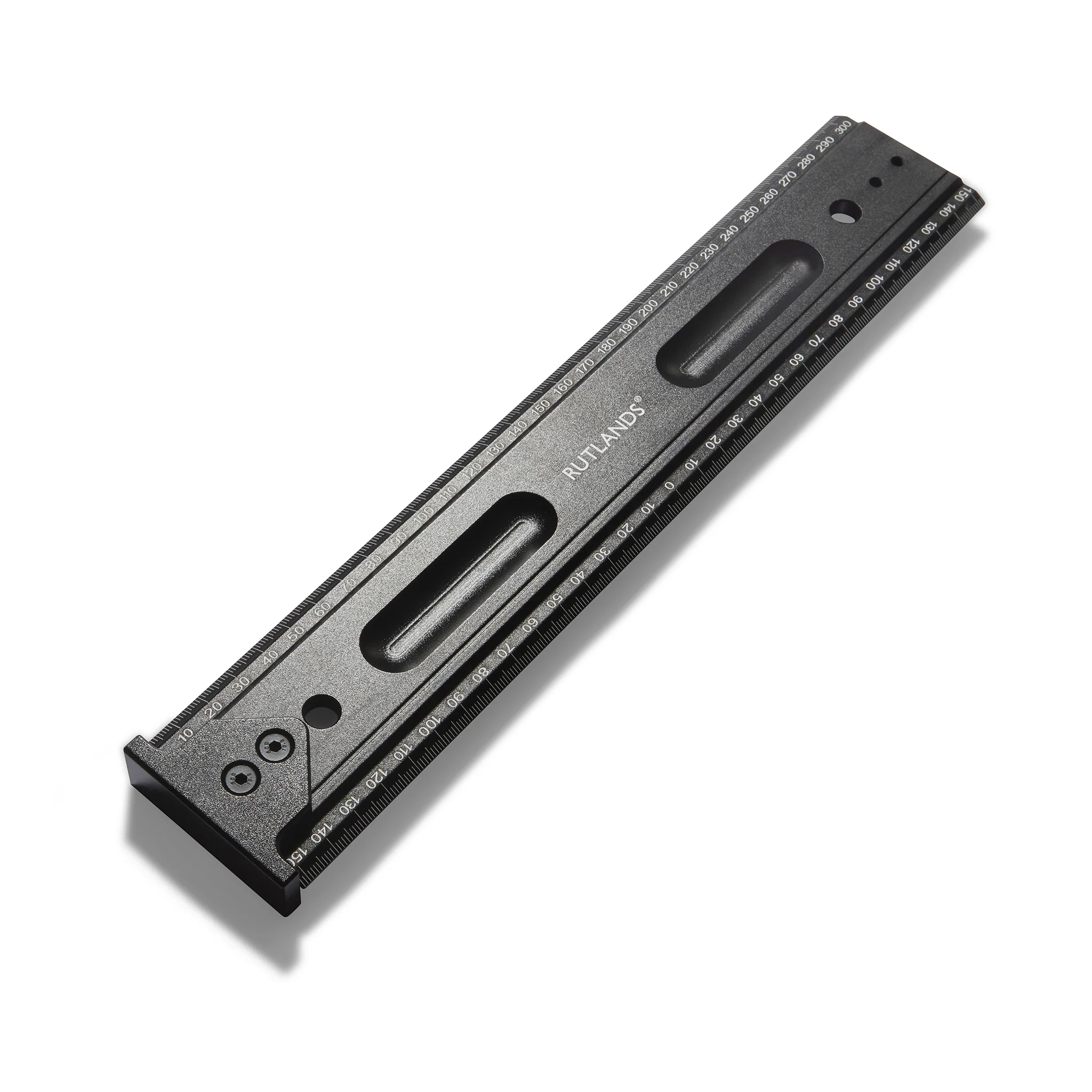

Straight Rule - 300mm
