This comprehensive set of 3 digital measuring tools will take the guesswork out of setting up your power tools or machinery, providing precision measurements on a clear digital display.

The digital angle rule is an invaluable device that is both a workshop rule and an angle gauge that is perfect for laying out, angle measurement and machine or power tool setup. You can measure inside and outside angles over a full 360° in 0.1° increments. The locking function allows the precise transfer of angles while the readout can also be zeroed at any position to allow relative measurements. When the blades are opened the digital display turns on and it will automatically switch off after 6 minutes of inactivity to prolong the 200 hour battery life.

The blades are made from corrosion resistant stainless steel which are guaranteed to be long lasting and durable. They have been laser etched with both metric and imperial graduations which are very easy to read, even in dimly lit rooms. The scales run from 0mm to 400mm in 1mm increments and from 0" to 7" in 1/32" graduations.

The opened length of the rule is 400mm with the digital readout being accurate to &plusmn0.1°. This is an extremely versatile measuring tool that can be used all around the workshop. Supplied with a 3V CR2032 lithium ion battery.

The digital level box is the latest advancement in angle sensor technology and is designed to self-calibrate if ever dropped by accident. It is the ideal tool for the accurate set up of table saw blades, jointer fences and bandsaw or drill press tables. The box allows angle measurement over a full 360° and the display read-out automatically inverts when measuring overhead, allowing the operator to view the measurement the correct way up. Accurate to 0.1 of a degree the LCD read-out has a back-display light for easy vision. Rare earth magnets built into the base of the box will lock rigidly onto saw blades and router cutters enabling hands-free operation of the machine for fast and correct angle set up.

The box measures 60mm x 60mm x 25mm and is powered by an included AAA battery and will auto shut off after 5 minutes of inactivity to preserve the battery life. The display will read absolute or relative angles, which is perfect for when you need to measure the relative angle between two surfaces. This digital angle box will prove invaluable in the workshop when setting up machinery and on-site when laying out steels and structures. The box has a durable aluminium construction that is water and dustproof to IP54.

The digital height and depth gauge has been specifically designed for woodworkers to allow you to set saw blade and router bit heights, as well as measure mortice or slot depths, with exact precision. There is an interchangeable pin supplied for use when you are required to make depth measurements, with depths of up to 70mm being able to be measured. A large, easy to view LCD display reads in inches, fractions or millimetres. Precise accuracy can be achieved as millimetres are displayed in 0.01mm increments, decimal inches are displayed in 0.0005" increments and fractions in 64th's. The display can be zeroed, ideal for making relative adjustments.

A polycarbonate frame enables the gauge to be self standing for ease of use and it has the added benefit of a low profile for back fence adjustments. The frame also features 70, 80 and 90° angles gauges if you need to quickly measure an angle. You can switch between the pre-set and zero set measurement modes for total accuracy up to 0.01mm. The router cutter depth measuring range is 0 to 80mm and the gauge has an internal width of 60mm.

The overall height of the gauge is 250mm and its overall width is 140mm. Supplied with an extra-long life 3V CR2032 lithium ion battery, it also has auto shut off for preserving battery life. This is our most popular height and depth gauge for woodworkers and cabinetmakers. ©

Gifts Under £100

Router Bit Set - Straight

180mm Japanese Water Stone - Set of 3

Aluminium Sash Clamps - 900mm - Pack of 6

Aluminium Sash Clamps with Feet - 1200mm - Pack of 4

Wood Carving Tools - Set of 5

Brad Point Bits - Set of 25

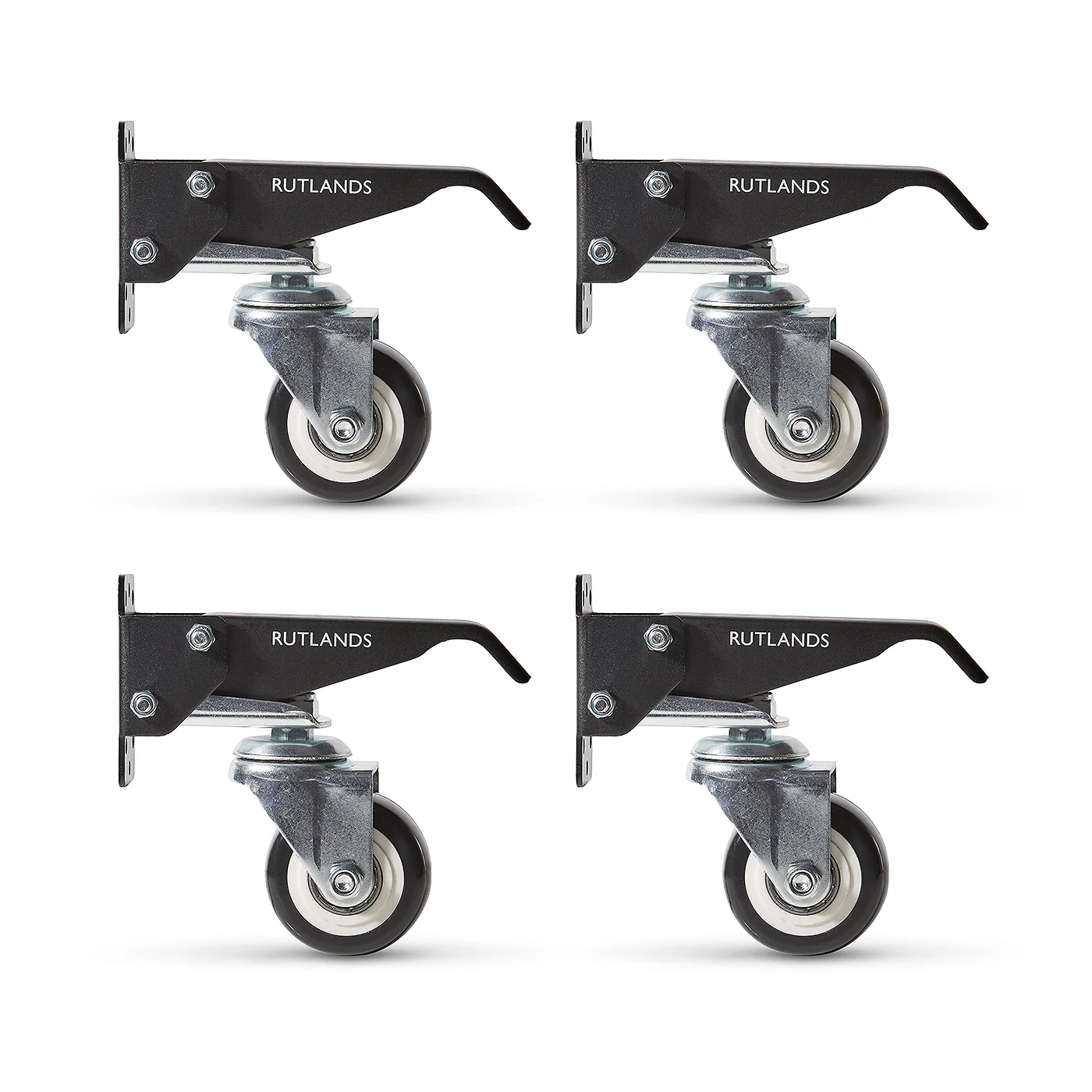

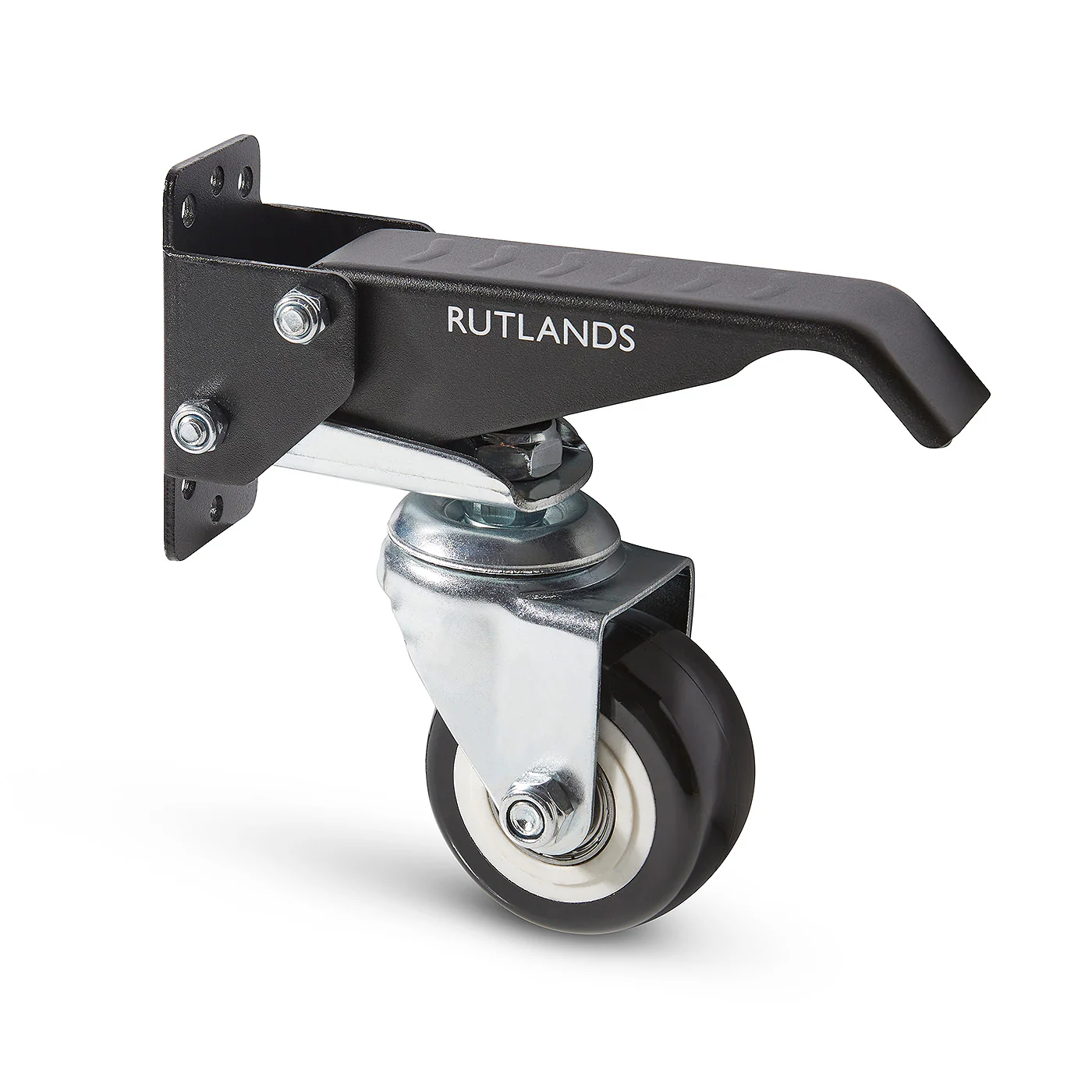

Castors with Lift - 60mm - Pack of 4
